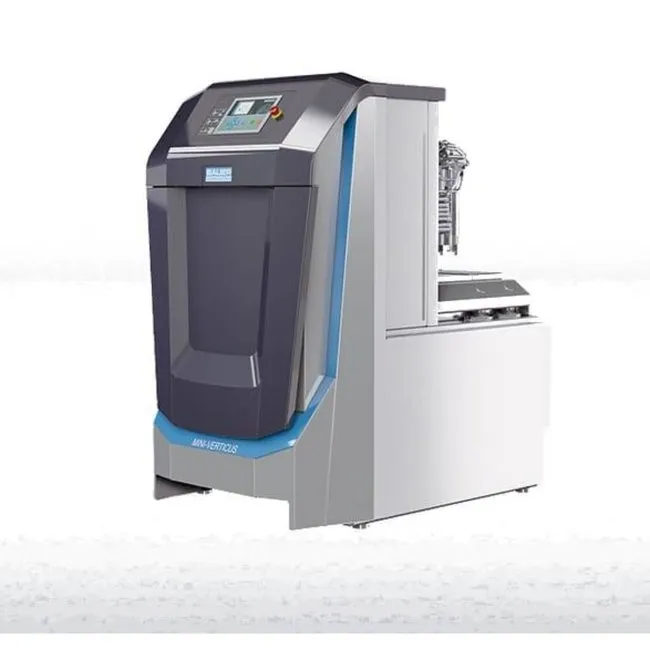

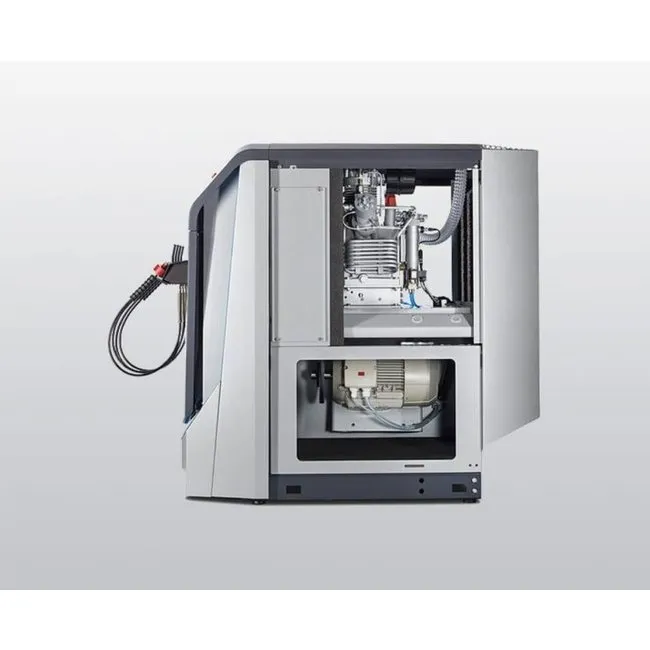

Bauer Compressors Mini Verticus 150-320
Bauer Compressors Mini Verticus 150-320
Bauer Compressors Mini Verticus 150-320
Bauer Compressors Mini Verticus 150-320
Bauer Compressors Mini Verticus 150-320
Bauer Compressors Mini Verticus 150-320
Bauer Compressors Mini Verticus 150-320
Bauer Compressors Mini Verticus 150-320
Bauer Compressors Mini Verticus 150-320
Bauer Compressors Mini Verticus 150-320
Bauer Compressors Mini Verticus 150-320
Bauer Compressors Mini Verticus 150-320

Bauer Compressors Mini Verticus 150-320

€15.100,00Incl. tax

€12.479,34 Excl. tax
Available, not in stock

The new MINI-VERTICUS combines the legendary BAUER compressor blocks with improved components and ultra-modern design! Read more..

  • Best price policy

    We offer a best price policy. Have you seen same product cheaper elsewhere? Mail us the link.
  • Fast delivery worldwide

    We offer fast delivery worldwide.
  • Free shipping in EU above €500,-

    We offer free shipping above €75 in NL, Belgium and Germany and above €500 for all EU countries
  • 14 days return policy

    Return within 14 days

Product description

Now significantly quieter
Thanks to the new anti-vibration frame and noise-optimised Super Silent housing.

Fully automatic B-CONTROL MICRO compressor
Control with colour display.

B-DRAIN
The new automatic condensate drain is quieter and saves energy.

Ergonomic design
Optimum accessibility and operation.

Long unit service life
Use of high-quality materials that have been optimised for continuous use.

Always on the safe side
Spare parts availability in more than 50 countries the world over – guaranteed for more than 25 years.

The new MINI-VERTICUS combines the legendary BAUER compressor blocks with improved components and ultra-modern design! During the redesign, the focus was on ergonomics, making operation as easy as possible, reducing noise and boosting efficiency. MINI-VERTICUS is now available with a higher charging rate of 320 l/min and with an open design as standard.

As Super Silent version, the MINI-VERTICUS is ideal for use in environments where noise is a key concern and for customers who need reliable and durable service combined with low running costs.
The advanced B-CONTROL MICRO is more powerful and ready to communicate with the B-APP for remotely controlling and monitoring the compressor.
All control elements that are important for everyday operation are ergonomically arranged and easily accessible from the front.
A proven and powerful unit concept that is setting new standards in technology and ergonomics with outstanding BAUER quality and cutting edge technology.

More than 70 years' experience of designing and building compressors and the extensive know-how of our test and development center enable us to produce systems which are perfectly matched to your needs and requirements.

Type designation

MV 150

  • Charging rate ¹
    • l/min: 150
    • m³/h: 9
  • operating pressure
    • Bar: 350
  • Speed approx.
    • Rpm: 1340
  • Motor output
    • kW: 4
  • Purification system: P 41
  • Net weight
    • Kg: 324
  • Dimensions L × W × H
    • Cm: 120 × 79 × 138

MV 200

  • Charging rate ¹
    • l/min: 200
    • m³/h: 12
  • Operating pressure
    • Bar: 350
  • Speed approx.
    • Rpm: 1270
  • Motor output
    • kW: 4
  • Purification system: P 41
  • Net weight
    • Kg: 324
  • Dimensions L × W × H
    • Cm: 120 × 79 × 138

MV 250

  • Charging rate ¹
    • l/min: 250
    • m³/h: 15
  • Operating pressure
    • Bar: 350
  • Speed approx.
    • Rpm: 1470
  • Motor output
    • kW: 5
  • Purification system: P 41
  • Net weight
    • Kg: 333
  • Dimensions L × W × H
    • Cm: 120 × 79 × 138

MV 320

  • Charging rate ¹
    • l/min: 320
    • m³/h: 2
  • Operating pressure
    • Bar: 350
  • Speed approx.
    • Rpm: 1450
  • Motor output
    • kW: 5
  • Purification system: P 41
  • Net weight
    • Kg: 350
  • Dimensions L × W × H
    • Cm: 120 × 79 × 138

# if you want us to ship a compressor outside the Netherlands then let us know the address you'd like us to ship to, we will then inform you the actual shipping costs.

IK 100 and IK 120 compressor blocks
The BAUER IK 100 and IK 120 series compressor blocks have been designed for the most demanding professional applications. Dimensioned for more than 30,000 operating hours, they have proven their worth in thousands of application scenarios.

IK 12.14 compressor block
The BAUER IK 12.14 compressor block is used for both breathing air and industrial units. Its durability, reliability and high-quality design provide the basis for fault-free operation of the compressor.

P 41 Purification system When used in conjunction with original BAUER filter cartridges, the P 41 filter system with additional oil and water separator and pressure retention check valve can be relied upon for breathing air treatment conforming to DIN EN 12021:2014¹. A type-tested and sealed final pressure safety valve enables particularly high levels of operational safety to be achieved. 1550 m³ of air can be treated.
¹ If the units are maintained and installed correctly as described in the user manual and subject to the BAUER AERO-GUARD being used if CO2 concentration in the intake air exceeds prescribed standard values.

B-CONTROL MICRO compressor control
The B-CONTROL MICRO is a modern, easy-to-use compressor control with colour display for the control and reliable monitoring of all basic functions.

B-DRAIN automatic condensate drain
The automatic condensate drain automatically removes the condensate that forms during compression (water/oil mixture) from the intermediate separators and the final separator and collects it in a condensate vessel.

Motor rocker
The integration of a motor rocker means that the tension of the V-belt no longer has to be adjusted.
