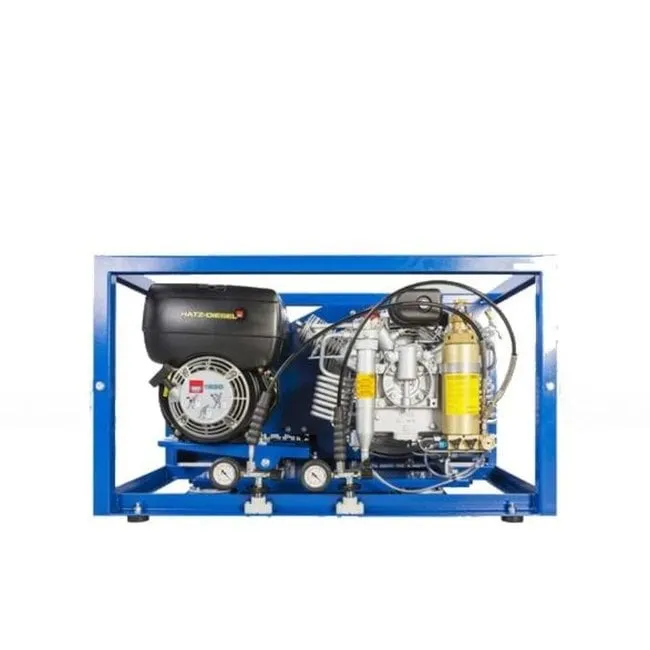

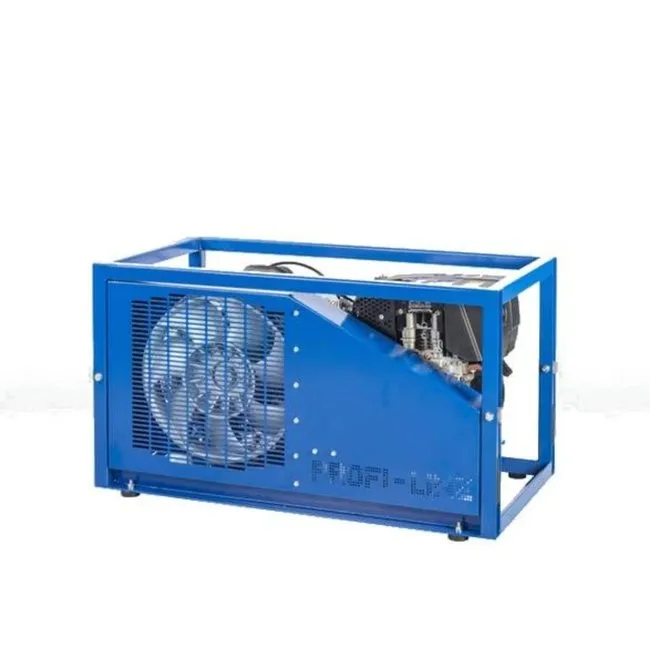

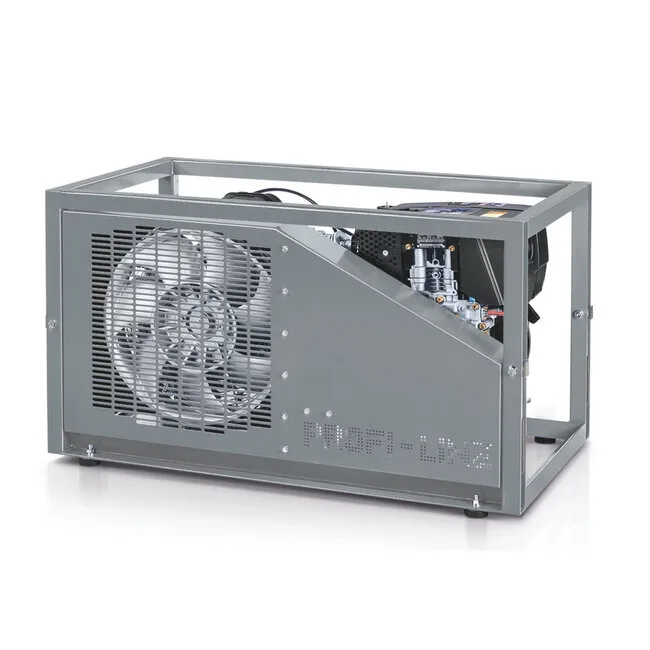

Mobile, diesel-powered 140 l/min unit for breathing air applications up to 330 bar

When performance matters: the CAPITANO II-D provides off-grid high-pressure supply for demanding outdoor or emergency operations.

Certified Breathing Air Quality

The BAUER CAPITANO II-D delivers independently tested and accredited breathing air quality that not only meets but exceeds international standards such as EN 12021:2014, CGA/ANSI Grade E, and other relevant norms – ensuring maximum safety for every application.

High-Output Diesel Engine

The CAPITANO II-D is equipped with a robust, high-output diesel engine, the most powerful in its class, delivering maximum independence, high energy efficiency, reliability, and long service life for continuous mobile operation.

Robust Design for Extreme Applications

The CAPITANO II-D features a steel frame and is consistently designed for the harshest operating conditions. Its robust components ensure corrosion-resistance, reliability, and stable performance even in extreme environments, including marine applications.

Most Comprehensive Options and Accessories Program

BAUER offers the industry’s most comprehensive portfolio of options and accessories, enabling precise, application-specific configuration of complete breathing air systems. Solutions cover the entire process chain, from compression and air and gas treatment to quality monitoring and legally compliant cloud documentation. All components are fully integrated, system-compatible, and available from a single source, without the need for custom-built solutions.

Premium Quality

BAUER breathing air compressors are manufactured to state-of-the-art production standards using precisely matched components. High-quality materials, precision manufacturing, and rigorous quality control ensure long service life, high reliability, and consistent performance under the harshest operating conditions.

• Charging rate: 140 ltr/min
• Maximum operating pressure: 330 Bar
• Drive Motor: Diesel engine - 5 kW
• Dimensions: ca. 110 × 58 × 62.5 cm (L x W x H)
• Net Weight: ca. 158 kg
• Filter system: P-21

Details & Features

The CAPITANO II-D was developed for extreme conditions. Its reliable Hatz diesel engine allows independent operation even far from any power supply. The robust design with industrial roller bearings and a three-stage compressor block ensures durability and performance in continuous operation. The high-quality intermediate and aftercoolers made of stainless steel withstand even the toughest operating conditions. The sturdy steel protective frame offers excellent equipment protection.

# if you want us to ship a compressor outside the Netherlands then let us know the address you'd like us to ship to, we will then inform you the actual shipping costs.

Compressor block

Bauer's compressor blocks are based on decades of experience and development. An efficient air cooling system with large coolers and finned cylinders ensures optimal cooling. Robust industrial roller bearings, pressure lubrication, and fine oil filters minimize wear. Dynamically balanced drive units ensure smooth operation and long maintenance intervals.

P 21 filter system

The integrated P 21 filter system with oil and water separator as well as pressure-retaining non-return valve ensures reliable breathing air in accordance with DIN EN 12021¹ when using original BAUER filter cartridges. A type-tested, sealed final pressure safety valve ensures maximum operational safety. The processable air volume is 140 m³.

¹ Applies when properly maintained and installed, and if CO₂ limits in accordance with the standard are not exceeded.

Crash frame incl. carrying handles

The corrosion-resistant crash frame provides additional protection and space for accessories such as compressor control or larger filter system. The carrying handles ensure easy and comfortable transport.

Filling device

The filling device consists of a flexible "UNIMAM" high-pressure filling hose and a filling valve with a final pressure gauge. The gauge allows easy reading of the filling pressure and is reliably protected against damage by a robust rubber coating.

Filling hose

The high-quality UNIMAM high-pressure filling hoses are made of food-grade, durable material and provide maximum flexibility during handling. Swiveling hose connections allow for quick, easy, and safe connection of the filling valve to the breathing air cylinder.

Diesel engine

The standard Hatz diesel engine ensures reliable, low-maintenance performance with low operating costs.

Motor rocker with belt tensioner

Thanks to the integrated motor rocker with belt tensioner, no retightening of the V-belt is required anymore.
