Please note, can only be used with the Lens Adapter SL081!

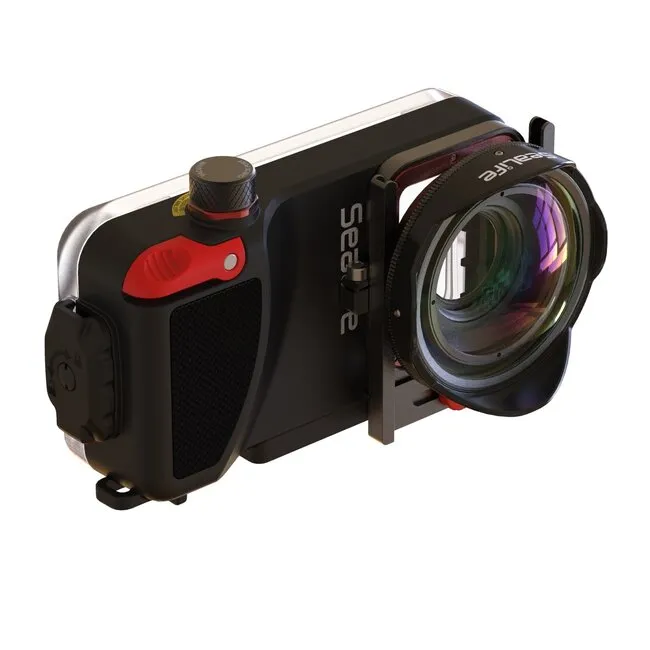

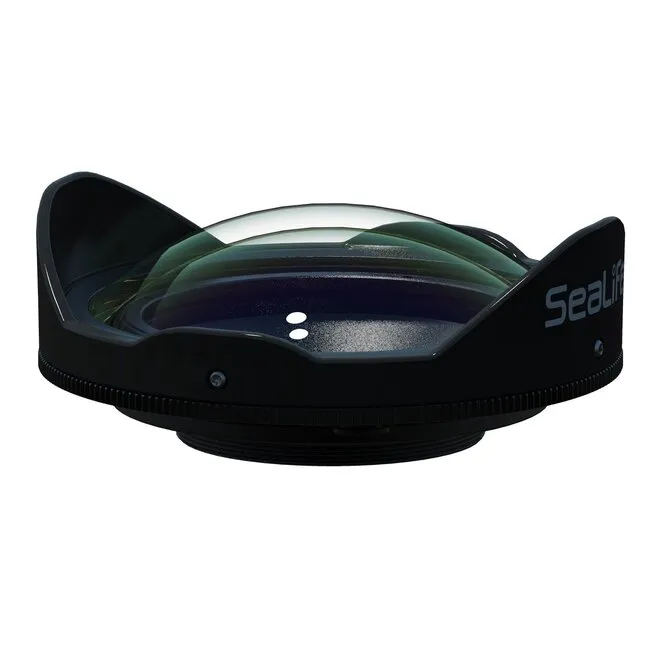

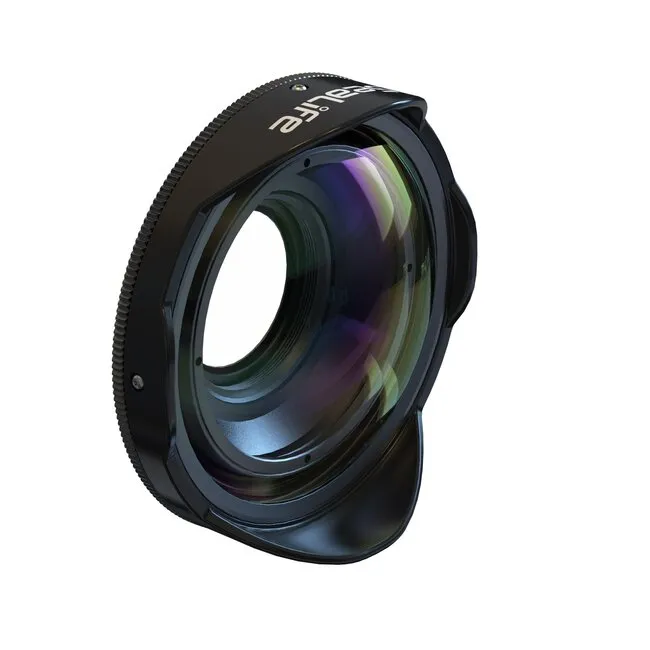

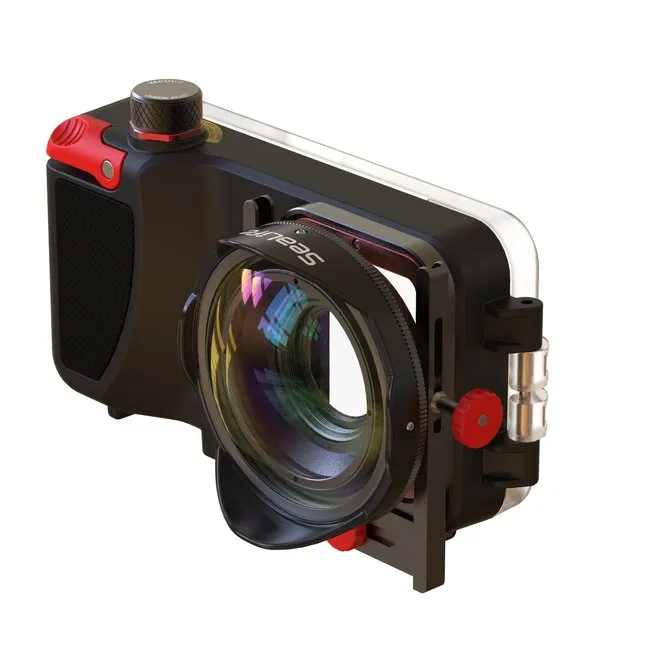

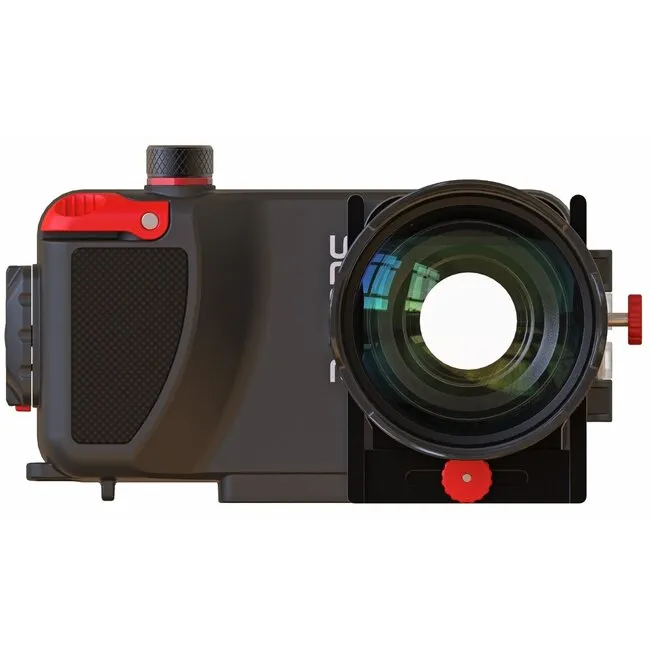

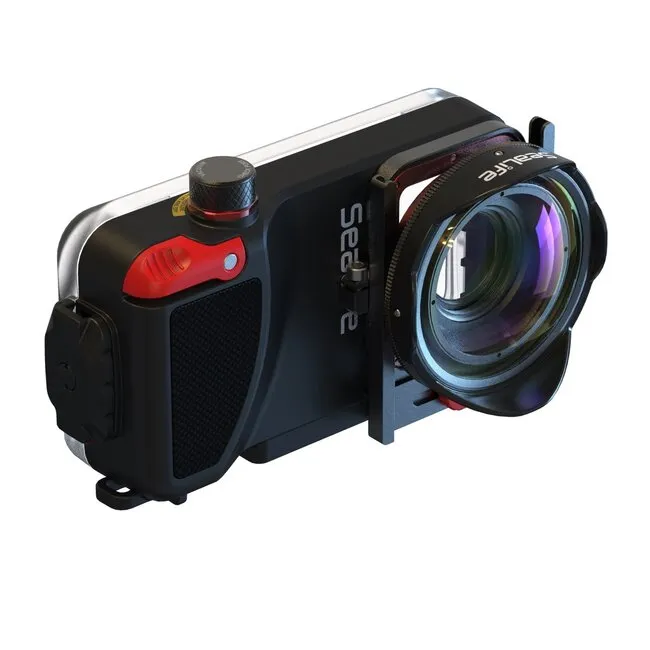

The SportDiver Wide Angle Dome Lens for the SportDiver attaches to the Smartphone housing with its 52mm thread mount to the SportDiver SL081 Lens Adapter. The lens also mounts to other underwater cameras and housings using a 52mm thread mount. The increases the phone or camera’s field-of view by 43% and allowing photographers to get two times closer to the subject.

The SportDiver Wide Angle Dome Lens design uses high-grade optics arranged in a 4- element/4- group array that delivers crisp edge-to-edge sharpness. The internal elements are fully multi-coated optical glass. The dome lens is optical polycarbonate with hard, anti-scratch coating.

The lens has a 18.2mm film-equivalent effective focal length when used with a 26mm phone or camera lens. The lens is waterproof to 200ft/60m.

The SportDiver Wide Angle Dome Lens is a “wet lens” and easily attaches and removes underwater. A locking ring prevents the lens from accidently detaching when bumped or in rougher water conditions.  The lens weighs 11.6 ounces (329 grams) and is negatively buoyant. A lanyard is included to prevent loss underwater, the lens threads on to the SeaLife SportDiver Lens Adapter (SL081). The rotatable light shade prevents unwanted glare from external lighting or sunlight, as well as protect the dome lens from bumps and abrasion.

Features

• Get 3x closer and 43% wider field-of-view
• Optical design corrects barrel distortion and improves edge-to-edge sharpness
• Works with SportDiver Lens Adapter (SL081), SeaLife DC2000, Olympus and other UW housings with 52mm lens port
• 7x wide-angle conversion
• Fully multi-coated optics for maximum light transmission
• Lens can be attached/removed while underwater
• Precision 4-element/4-group high-grade optics (internal optical glass)
• Polycarbonate Dome lens with scratch-resistant hard coating
• Includes neoprene dome lens cover, rear lens cap and protective pouch
• Waterproof to 200ft / 60m

Specifications

Optical construction:
4 elements / 4 groups

Field-of-view (underwater/diagonal):
Increases field-of-view of camera’s native lens by 43% Note: Lens may vignette with ultrawide smartphone lens setting

Optical coatings:
Air-to-glass surfaces fully multi-coated with anti-reflective coating

Magnification Ratio:
0.7X

Attachment method:
Standard 52mm threaded lens

Focus Ranges:
Close focus distance is increased by approximately 50% depending on the native camera lens.

Lens weight (lens only):
329 grams/11.6 ounces on Land; 168 grams/5.9 ounces underwater

Lens dimensions:
3.9” diameter x 1.5” length (99 mm diameter x 39mm length)

Construction:
Black Hard Anodized (type III) Aluminum

Depth:
Depth tested to 200’ (60 m)

Buoyancy:
Negative (5.9 ounces / 168 grams)

Warranty:
1-year limited warranty.

Packaging dimension:
4.8” x 4.8” x 2.4” (123mm x 123mm x 60mm)

Packaging weight:
1 lb. (453 grams)

What's in the Box

• 52mm Wide Angle Dome Lens
• Neoprene dome lens cover
• Rear lens cap
• Protective storage pouch
• Lens retaining lanyard
• Microfiber cleaning cloth
• Instruction sheet
